PC Plotter Connection

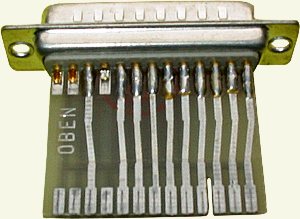

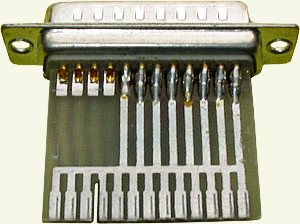

The adapter is to connect with the plotter connector and on the other end with a normal printer cable connected to the PC printer port. The Operation Instructions informs that the power connector of the plotter must be cut and then to be connected to the 5V regulator. It is easily possible to make an own adapter like this ( a printer cable with a male connector that fits into the original plotter female connector ).
The software collection contains 9 GW-Basic programs:
Start the two demo programs from GW-BASIC by RUN"A:MZ-DEMO1" and RUN"A:MZ-DEMO2". MZ-BLOCK.BAS was written for own programs. RUNxx.BAS are 6 additional demo programs.
Download the software ( German
instructions included; ZIP, 21 kb ).
